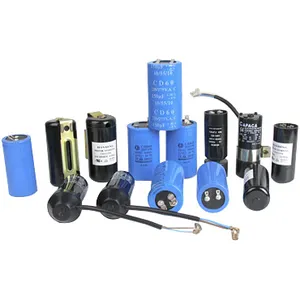

Aluminum Electrolytic Capacitor (CD60)
| Packing: | Standard Export Carton |
|---|---|
| Model NO.: | CD60 |
| Standard: | VDE, TUV, CE, Cb, UL, CSA, SGS, CQC,Cul |
| Productivity: | 600000pcs/month |
| Shipment Terms: | by Sea or by Air |
| Minimum Order: | 1000 Pieces |
| HS Code: | 85322590 |
| Trademark: | HANDING |
| Origin: | Zhejiang, China |
| Type: | Aluninum Electrolytic Capacitor |
| Package Type: | Through Hole |
| Application: | General Purpose |
Uses high-purity electron aluminum foil as its polar plates, and is wrapped with the dielectric materials of capacitor tissue and aluminum oxide. It has non-solid electrolyte, metal shell, and double-tab and lead wire terminals. It can be used in the start-up of single-phase AC motors (50Hz or 60Hz) to gain greater angular force under lower stating current. It is characterized by its excellent electric property, stable and dependable quality.
Working temperature range: -10~+55
Rated voltage: 110~330VAC
Capacity volume variance: +30% 0
Umax: UR<160V Umax=1.25UR; UR>160> Umax=1.2UR
Loss tangent: Tang< 0.15
Between leading-out ends: Between leading-out ends: 1.2UR, 2S no breakdown
Between leading-out end and shell: Between leading-out end and shell: 2000VAC, no breakdown.
